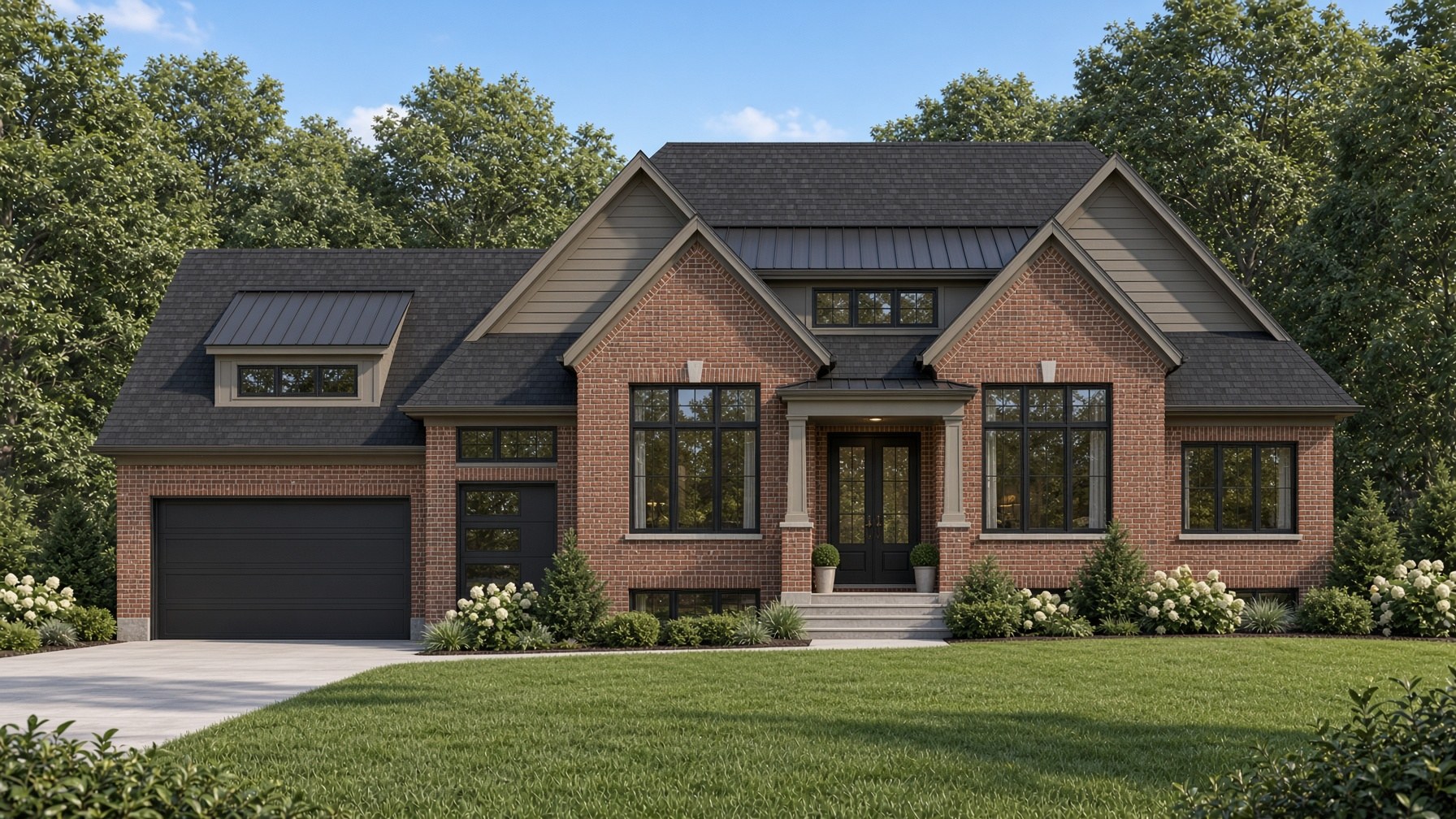

The Eldin — exterior

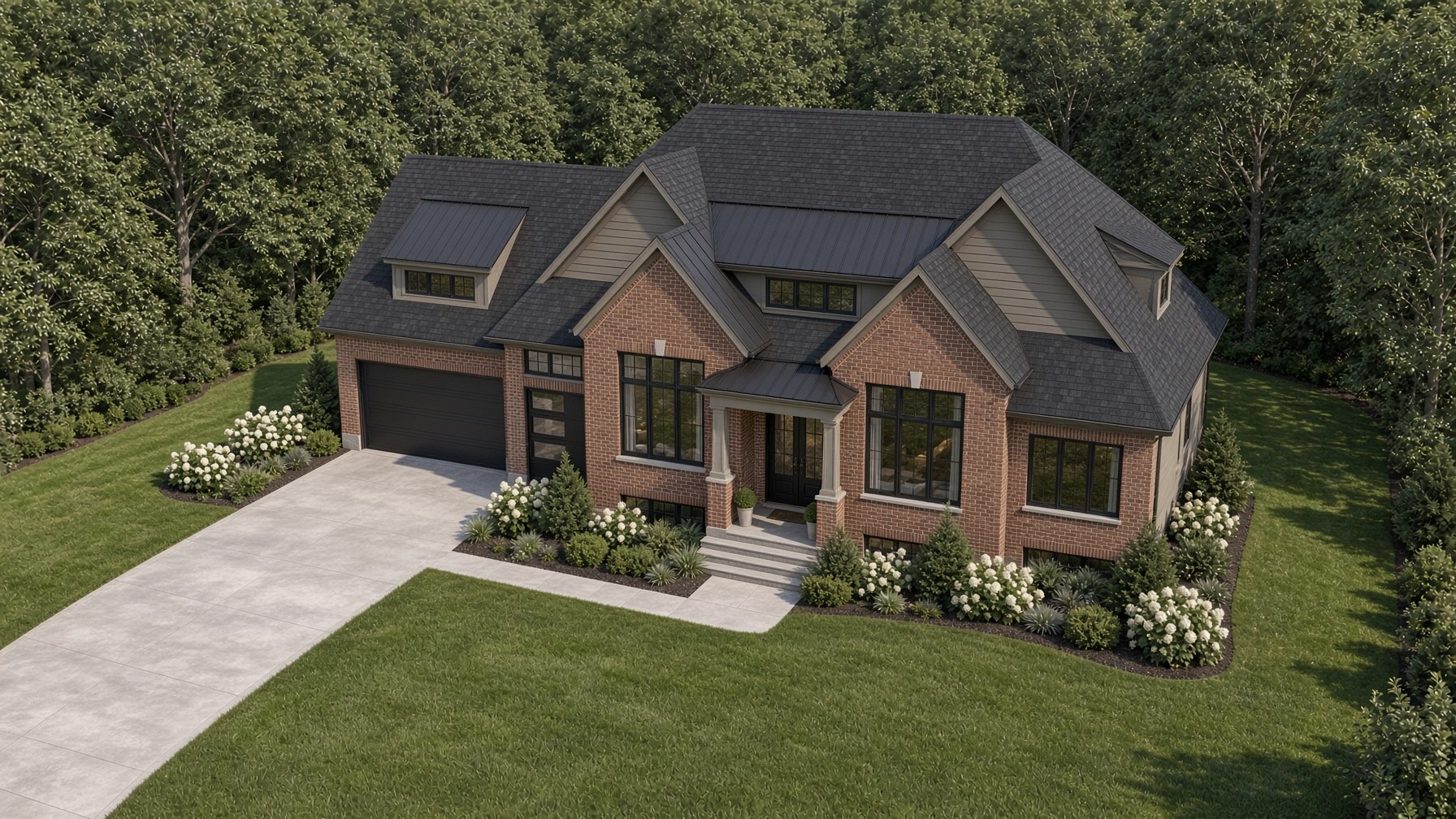

The Eldin — aerial

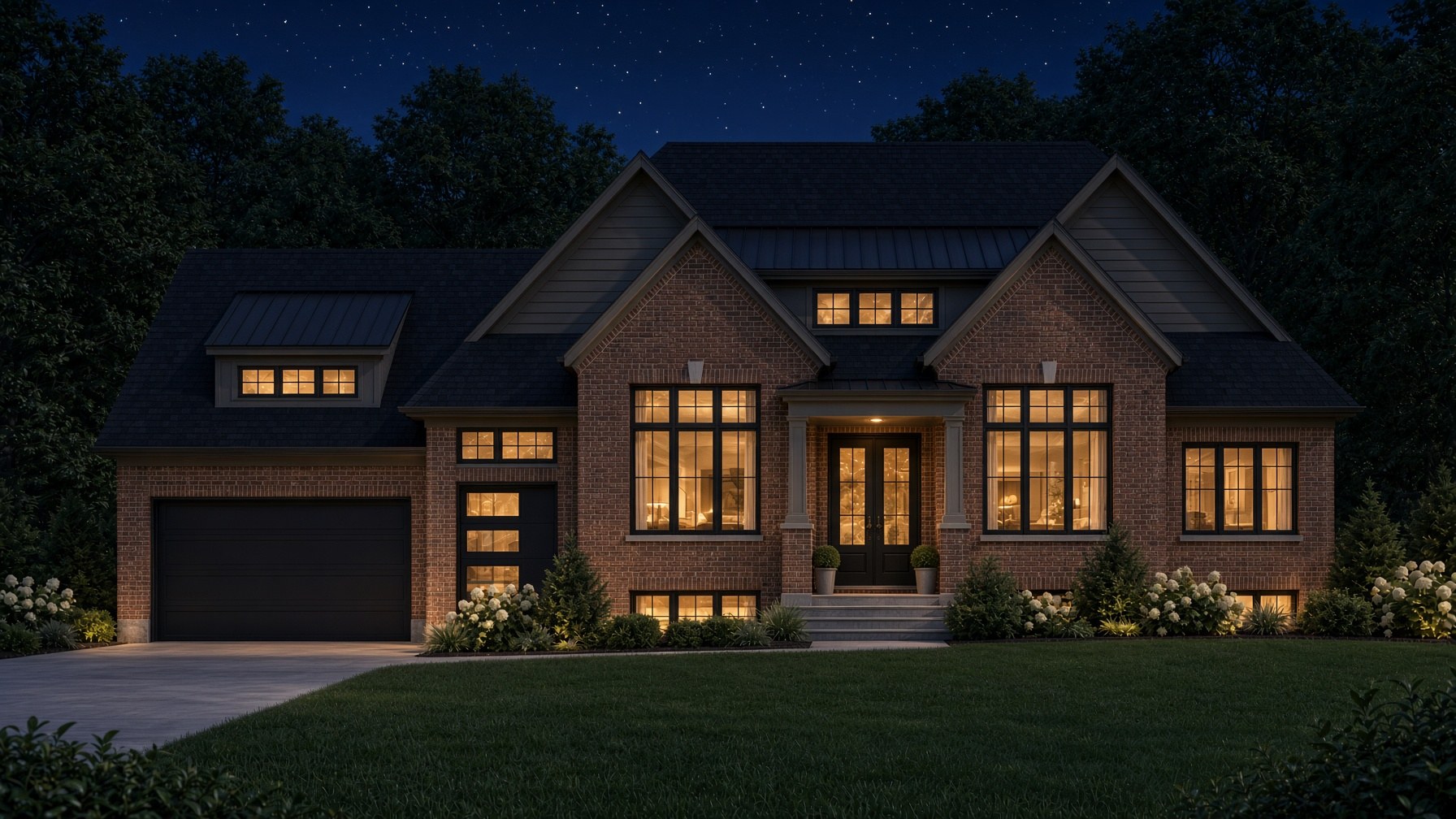

The Eldin — dusk

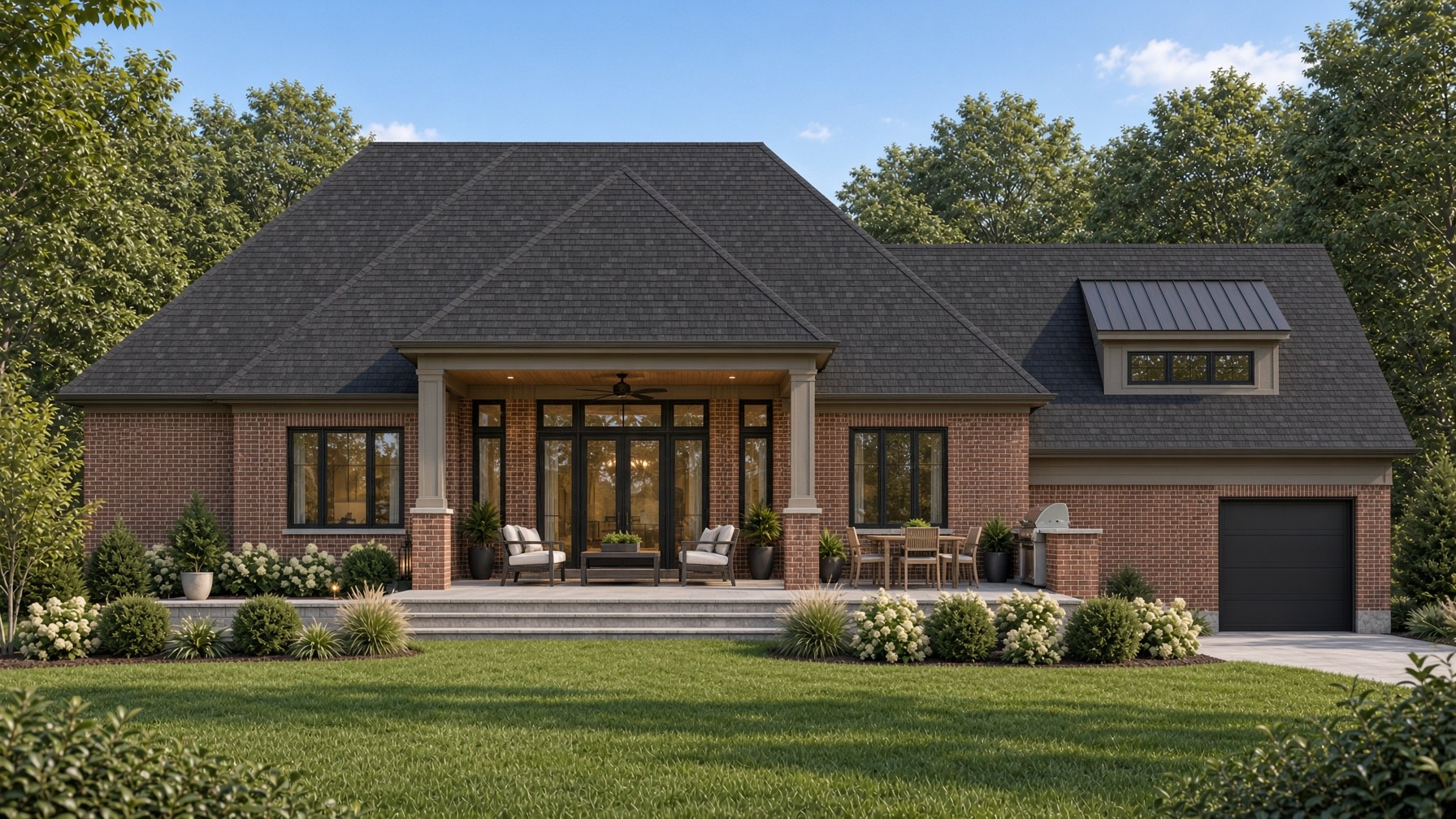

The Eldin — rear exterior

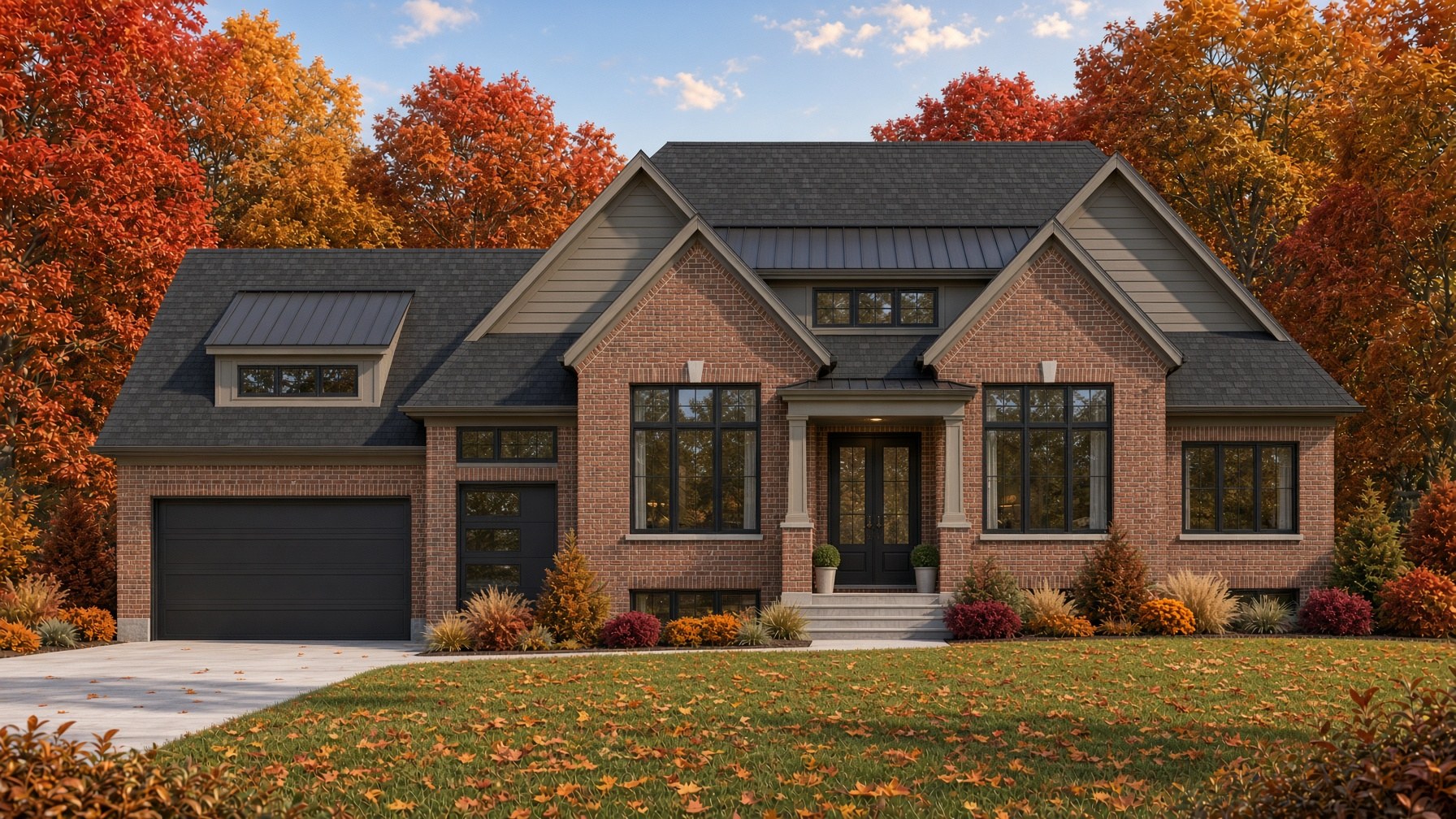

The Eldin — fall

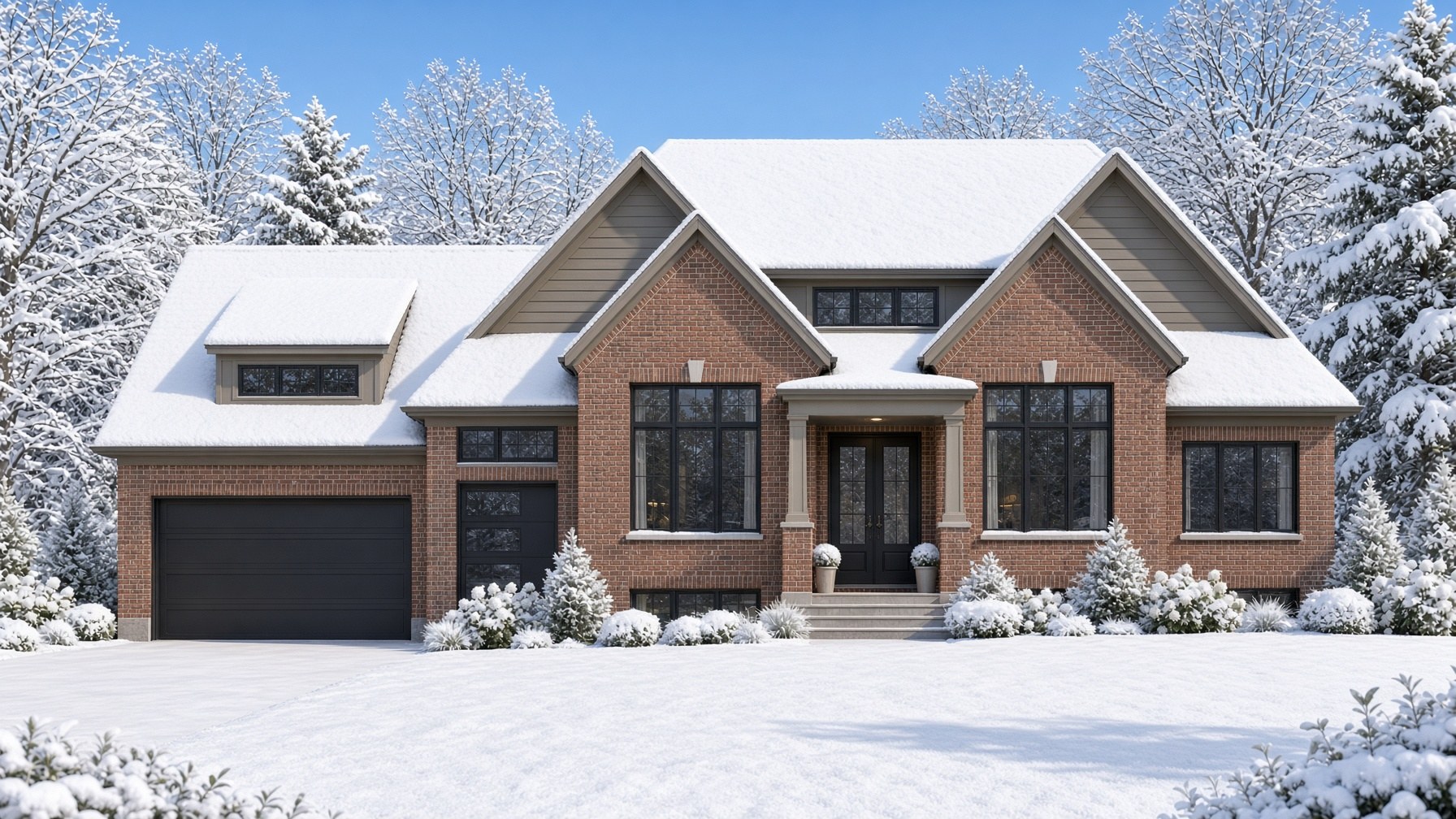

The Eldin — winter

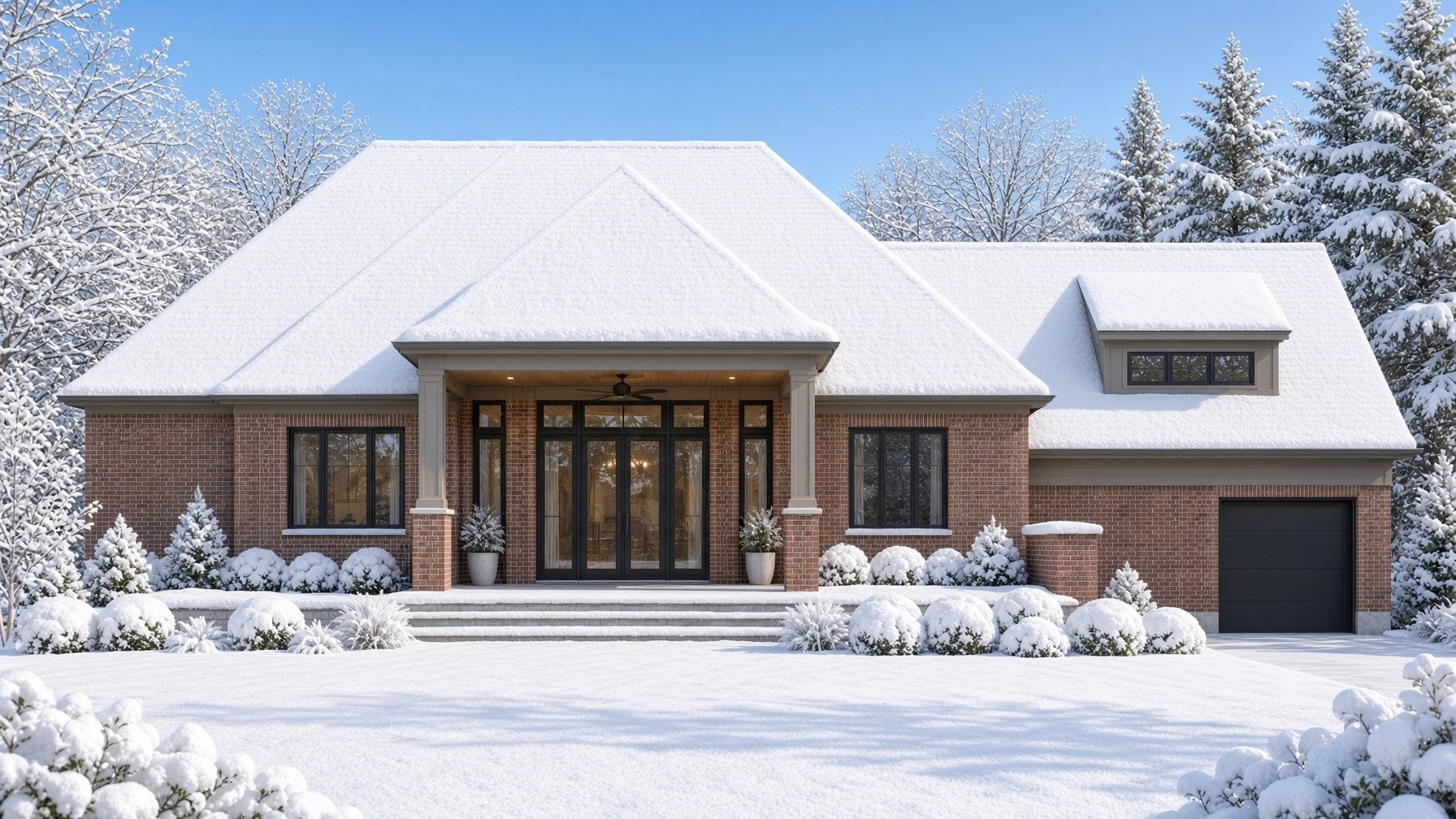

The Eldin — rear winter

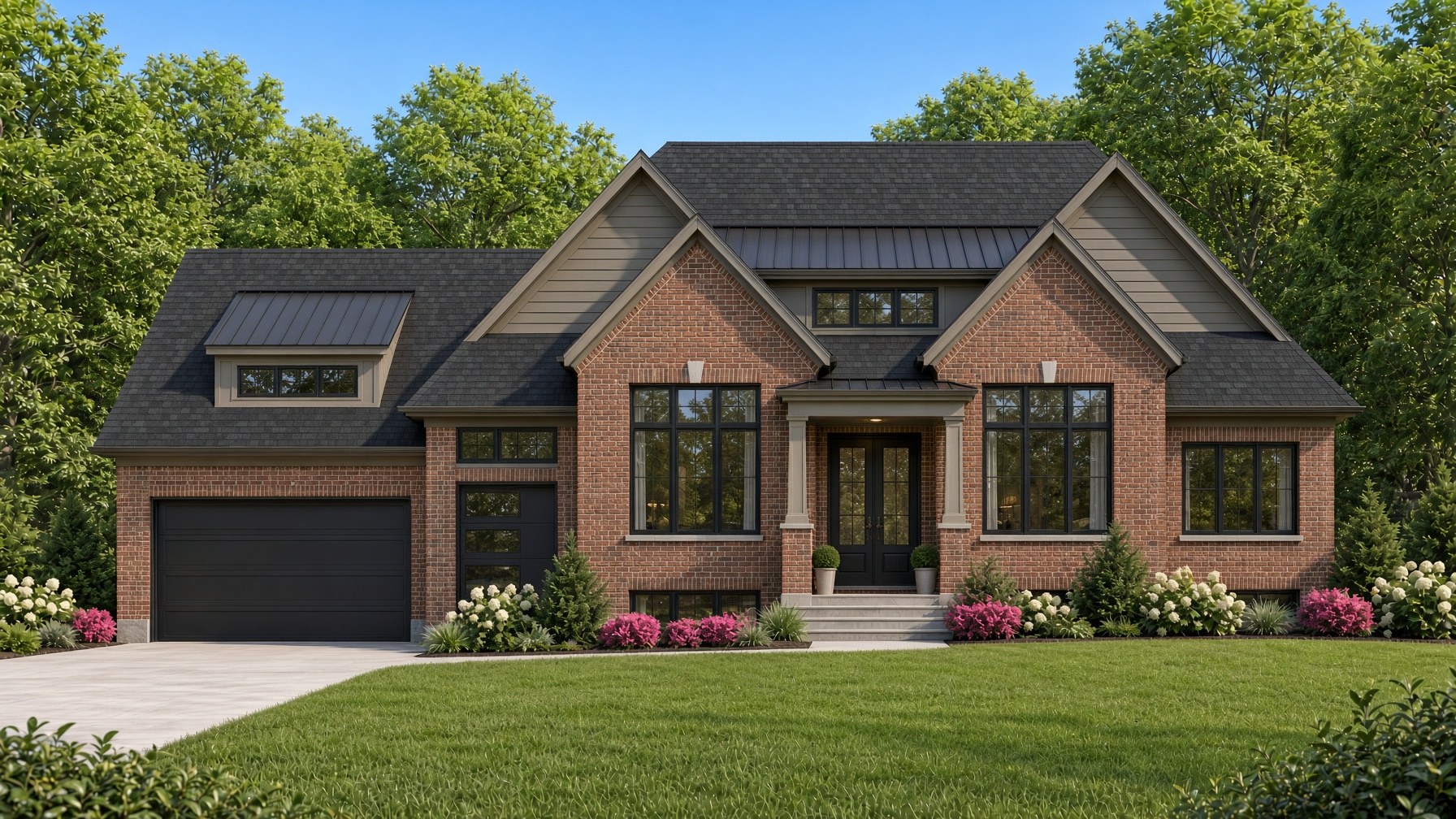

The Eldin — wide
The Eldin floor plan — Main Floor + Basement
Exterior
Main Floor
2,658sq ft
Basement
1,080sq ft
Floor Plans

Explore the layout

Download Floorplans (PDF)
The Eldin — Main Floor

Main Floor · 2,658 sq ft

Estate Collection

Features & home specifications

A private enclave of freehold country estate homes designed for architectural consistency, long-term performance, and refined rural living.

Leading high performance architecture & structure

  • ENERGY STAR certified — advanced building envelope performance, mechanical efficiency, and verified energy standards.
  • Comprehensive air-sealing strategy with third-party blower door testing to verify envelope performance.
  • 9'-0" main floor ceilings and 8' second floor ceilings
  • 8'-10" basement foundation height.
  • 10" concrete foundation walls with full exterior protection system including weeping tile drainage, drainage stone backfill, asphalt waterproofing membrane, and platon wrap.
  • 2" closed-cell spray foam insulation beneath the basement slab with integrated radon rough-in piping.
  • 1-13/16" Isobrace exterior insulated structural sheathing providing enhanced wall strength, improved thermal performance, and reduced air leakage.
  • Triple-glazed windows with low-E coatings and argon fill for enhanced thermal efficiency.
  • High-performance subfloor system glued and screwed to minimize movement and floor squeaks.
  • 2" closed-cell spray foam insulation on all exterior foundation walls with fully strapped 2×4 interior framing and R22 Rockwool batt insulation (approx. R34 assembly).
  • Above-grade exterior walls constructed with 2×6 framing, R22 batt insulation, and 1-13/16" Isobrace insulated structural sheathing (approx. R28 assembly).
  • 6" closed-cell spray foam insulation in garage ceilings below living space (approx. R32 assembly).
  • Fully finished garage ceilings and walls.
  • High-performance attic insulation package including R-60 blown-in insulation with R-54 batt insulation installed at attic perimeter wall plates.
  • High-efficiency air-source heat pump system integrated with air handler and ducted distribution, providing multi-zone heating and cooling.
  • Solar-ready home infrastructure with dedicated conduit and pre-installed cabling routed to attic for seamless future solar panel integration.
  • Each home is serviced by its own private drilled well and engineered septic system, designed and installed in accordance with approved servicing plans.
  • Advanced mechanical system featuring a Navien high-efficiency boiler, air-source heat pump with air handler, ENERGY STAR® certified energy recovery ventilator (ERV), and drain water heat recovery.

Exterior finishes

  • Premium wood-based siding and/or stucco with stone front elevations and coordinating brick to sides and rear.
  • Architectural asphalt shingles with steel roof accents (plan specific).
  • Aluminum soffit, fascia, and eavestrough system.
  • Exterior recessed pot light package including 8 pot lights.
  • Exterior GFI-protected electrical outlets (front and rear).
  • Architectural double or single insulated front entry door system with decorative options and upgraded locking hardware.
  • Insulated overhead garage doors.
  • Exterior frost-free hose bibs (front and rear).
  • Asphalt driveway, with premium concrete interlocking paver upgrade available.
  • Interlocking stone walkway to front entry.
  • Fully sodded lot with curated planting package including shrubs, armour stone, and mulch.
  • Security system rough-in including pre-wired camera locations.
  • Exterior recessed light package complete with 8 pot lights.
  • Pressure-treated wood rear deck complete with powder-coated aluminum railings and stairs to grade, providing direct access to the yard (plan specific).

Interior finishes

  • 3-5/8" Vintage Canadian engineered hardwood flooring throughout the home.
  • Premium ceramic tile flooring selections in bathrooms, mudroom, and laundry areas.
  • Solid oak staircase stained to selection with oak railings and black metal spindles.
  • 8' interior doors on main floor.
  • Designer interior door hardware package.
  • Smooth finished ceilings throughout the entire home.
  • Refined trim package including baseboards and casings.
  • Shelving systems installed in all closets
  • Freestanding tubs and/or custom tiled showers in all ensuite bathrooms (as per plan).
  • Marble niche and seat in ensuite showers.
  • Comfort-height toilets throughout.
  • Custom-cut vanity mirrors and glass shower enclosures.
  • Interior recessed light package with 25 pot lights and 4 dimmer switch locations.
  • CAT6 structured wiring throughout the home with 200 amp basement panel.

Cabinetry

  • Solid surface countertops throughout.
  • Kitchen cabinetry extending to the ceiling (up to 42") with crown moulding, backsplash, and integrated LED valance lighting.
  • Deep pot and pan drawers, garbage pullout, and drawer bank included in base cabinetry.
  • Soft-close hinges and drawer slides throughout cabinetry
  • Appliance service rough-ins provided as per plan.
  • Pantry cabinet and microwave shelf provided where layout permits.
  • Servery includes base cabinets and solid surface countertop.
  • Extra-deep island configuration where sink is located in island.
  • Laundry cabinetry package including up to 24" wide base cabinet with undermount stainless steel, solid surface countertop, pull-down faucet, upper cabinets, and hanging rod.
  • Built-in linen cabinets.

Plumbing & water features

  • Brizo designer plumbing fixtures throughout the home.
  • Vogt undermount sinks throughout.
  • Water line to refrigerator location.
  • Domestic hot water recirculation line and drain water heat recovery system to improve delivery efficiency, reduce wait times, and enhance overall energy performance.
  • Whole-home iron filtration and UV water purification system to improve water clarity, reduce iron content, and provide continuous ultraviolet disinfection
  • Optional reverse osmosis drinking water systems available upon request.
  • Whole-home water softener system to improve water quality and help protect plumbing fixtures and appliances.
  • Pre-installed irrigation rough-in up to approximately 100 ft., allowing for future sprinkler system installation and seamless landscape expansion.
  • High-capacity sump pump system installed with sealed sump basin and exterior discharge, integrated with the perimeter drainage system for long-term groundwater management.
  • Backwater valve installed on the main sanitary line to help protect the home against potential sewer backflow.
  • Main water shut-off valve located in an accessible service position.

Warranty

  • Full coverage under the TARION Warranty Program, providing comprehensive new home warranty protection.

Engineered with industry-leading building assemblies, refined with premium features, and designed with the flexibility to customize every home to our clients’ vision.

Specifications subject to plan, availability, and change without notice. E. & O.E.

From first visit to keys

Your custom home journey

From your first sketch to the final walkthrough — a clear path when you build this plan on your lot or in a WrightHaven community.

  1. Initial Information

    Lot ownership, zoning, surveys, and your vision for the home.

    Discover

  2. Design Process

    Inspiration boards to schematic layouts — a plan that fits how you live.

    Design

  3. Working Drawings

    Engineering, site planning, and finishes as your construction set.

    Document

  4. Build Agreement

    Pricing, deposits, and timelines in a clear design-build contract.

    Commit

  5. Construction

    Vetted trades, site updates, and quality oversight through the build.

    Build
Start your custom design

Ask About This Home

Pasture Edge · Inverhaugh · Bungalow

Ask About This Home
Pasture Edge

Browse Similar Plans

View More

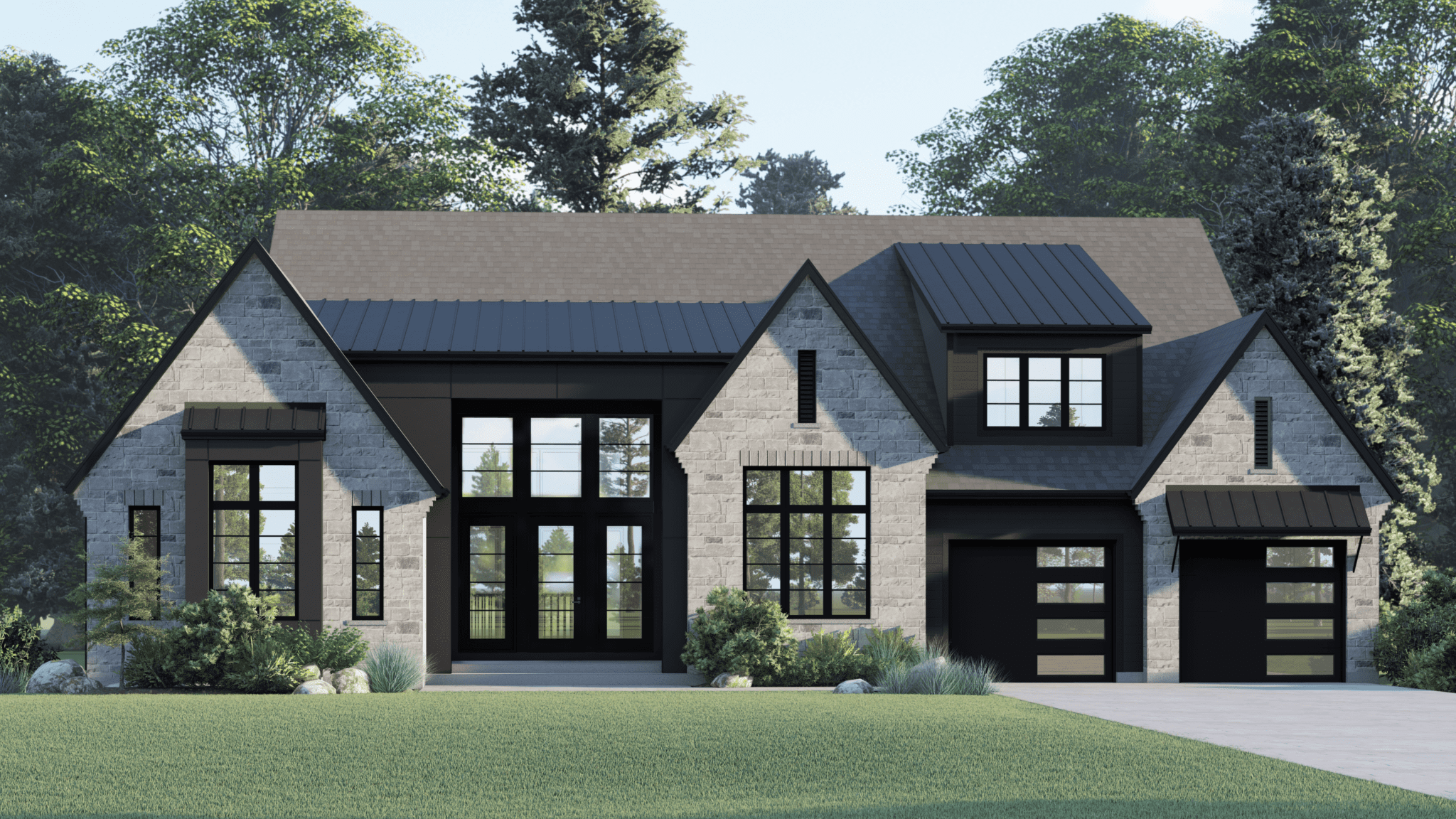

The Marbella
